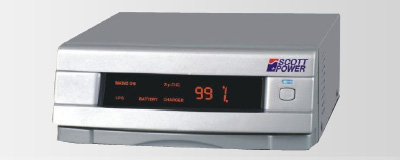

SCOTT POWER LONG BACKUP
PURE SINE WAVE UPS
|
|
Scott Power
Long Backup Sine Wave UPS is the latest in the world
of power backup systems. These UPSs are
packed with user-friendly features and are
symbols of convenience and comfort. These
UPSs require very little maintenance
and provides powerful performance with
all-round protection.
|
|
FEATURES |
-
Very high
load cold start by the UPS
-
Surface
Mounted Technology for reliable and compact
design
-
Zip-charge
technology for faster charging and longer
battery life
-
Intelligent
Thermal Management
-
Free
Pre-loaded Battery Management Software
-
Battery
Charging at as low as 120V Mains Voltage
-
Miniature
Circuit Breaker instead of fuse to protect
load and equipments
|
 |
|
|
LOAD CHART |
|
RATING |
600VA |
800VA |
1500VA |
|
OPTIONS |
Option 1 |
Option 2 |
Option 3 |
Option 1 |
Option 2 |
Option 3 |
Option 1 |
Option 2 |
Option 3 |
|
FAN |
4 |
3 |
1 |
4 |
3 |
2 |
10 |
9 |
5 |
|
TUBE LIGHT |
3 |
3 |
1 |
5 |
5 |
2 |
9 |
9 |
8 |
|
COMPUTER |
x |
x |
1 |
x |
x |
1 |
x |
x |
1 |
|
TELEVISION |
x |
1 |
x |
x |
1 |
x |
x |
1 |
x |
|
|
TECHNICAL SPECIFICATIONS* |
|
|
RATING |
600VA |
800VA |
1500VA |
|
INPUT |
Regulated UPS Mode |
|
|
Under Voltage |
180+/-5V |
|
Under Voltage
Restoration |
185+/- 5V |
|
Over Voltage |
260+/-5V |
|
Over Voltage
Restoration |
255+/-5V |
|
Unregulated UPS Mode |
|
|
Under Voltage |
100+/-10V |
|
Under Voltage
Restoration |
115+/-10V |
|
Over Voltage |
285+/-10V |
|
Over Voltage
Restoration |
270+/-10V |
|
OUTPUT |
Maximum Power |
600VA |
800VA |
1500VA |
|
Voltage (UPS
Mode) |
230V Nominal |
|
Voltage (Mains
Mode) |
Same as Input |
|
Frequency (UPS Mode) |
50 Hz.+/- 2% |
|
Frequency (Mains Mode) |
Same as Input (45-55 Hz.) |
|
Overload |
>110% |
|
Transfer Time (typical a.s) |
10 ms. |
|
BATTERY |
Type |
120 AH - 150 AH Lead Acid Type |
|
Number |
1 |
2 |
|
Typical Recharge Time |
10 - 12 Hrs. |
|
Protection |
LOW BATTERY, REVERSE POLARITY |
|
LED DISPLAY |
|
UPS On |
On |
|
Low Battery Pre-Alarm |
Lo (UPS On) |
|
Battery Low |
Lo |
|
Mains On |
AC |
|
Zip Charge |
CH |
|
Overload |
OL (Steady) |
|
No Load |
nL |
|
Over Temperature |
th |
|
Short Circuit under Battery Mode |
OL (Blinking) |
|
MCB Trip or
Short Circuit under Mains Mode |
bt |
|
ALARMS |
Low Battery
Pre-Alarm |
Beeping
every 10 Seconds |
|
Low Battery |
Continuously Beeping
for 10 Seconds |
|
Overload |
Continuously Beeping
for 10 Seconds |
|
No Load Shut Down |
Continuously Beeping
for 10 Seconds |
|
Short Circuit |
Continuously Beeping
for 10 Seconds |
|
ENVIRONMENTAL |
Operating
Temperature |
0-40oC
(32-104oF) |
|
Storage Temperature |
0-40oC
(32-104oF) |
|
Humidity |
0-95% RH
non-condensing |
|
|
Note: Due to continuous product
improvement technical specifications are subject to
change without prior notice. |
|
SCOTT POWER UPS
|
|
Scott Power
UPS comes from state-of-art facility. This UPS is
specially designed for trouble free performance year
after year. Scott Power UPS is continuously upgraded and
enhanced with new and attractive features. |
|
FEATURES |
-
Very high
load cold start by the UPS
-
Surface
Mounted Technology for reliable and compact
design
-
Zip-charge
technology for faster charging and longer
battery life
-
Intelligent
Thermal Management
-
Free
Pre-loaded Battery Management Software
-
Battery
Charging at as low as 120V Mains Voltage
-
Miniature
Circuit Breaker instead of fuse to protect
load and equipments
|
 |
|
|
LOAD CHART |
|
RATING |
3KVA |
|
OPTIONS |
Option 1 |
Option 2 |
|
FAN |
7 |
18 |
|
TUBE LIGHT |
7 |
18 |
|
TELEVISION |
1 |
1 |
|
AC 0.75 TON |
1 |
x |
|
|
TECHNICAL SPECIFICATIONS* |
|
|
RATING |
3 KVA |
|
INPUT AC RANGE |
Regulated UPS Mode |
|
|
Under Voltage |
100+/-5V |
|
Under Voltage
Restoration |
185+/- 5V |
|
Over Voltage |
260+/-5V |
|
Over Voltage
Restoration |
255+/-5V |
|
Unregulated UPS Mode |
|
|
Under Voltage |
100+/-10V |
|
Under Voltage
Restoration |
115+/-10V |
|
Over Voltage |
285+/-10V |
|
Over Voltage
Restoration |
270+/-10V |
|
OUTPUT |
Maximum Power |
3 KVA |
|
Voltage (UPS
Mode) |
230V Nominal |
|
Voltage (Mains
Mode) |
Same as Input |
|
Frequency (UPS Mode) |
50 Hz.+/- 2% |
|
Frequency (Mains Mode) |
Same as Input (45-55 Hz.) |
|
Overload |
>110% |
|
BATTERY |
Type |
120 AH - 150 AH Lead Acid Type |
|
Number |
4
|
|
Typical Recharge Time |
10 - 12 Hrs. |
|
Protection |
LOW BATTERY, REVERSE POLARITY |
|
DISPLAY |
|
UPS On |
On |
|
Battery Low |
Lo |
|
Mains On |
AC |
|
Zip Charge |
CH |
|
Battery Charged |
99% |
|
Overload |
OL (Steady) |
|
No Load |
nL |
|
Over Temperature |
th |
|
Short Circuit under Battery Mode |
OL (Blinking) |
|
MCB Trip or
Short Circuit under Mains Mode |
bt |
|
ALARMS |
Low Battery
Pre-Alarm |
One Beep
every 10 Seconds |
|
Low Battery |
Continuous Beeping |
|
Overload |
Continuous Beeping |
|
No Load Shut Down |
Continuous Beeping |
|
ENVIRONMENTAL |
Operating
Temperature |
0-40oC
(32-104oF) |
|
Storage Temperature |
0-40oC
(32-104oF) |
|
Humidity |
0-95% RH
non-condensing |
|
|
* Due to continuous product improvement
technical specifications are subject to change without
prior notice. |
|

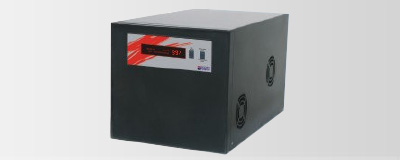

SCOTT POWER
HIGHER KVA UPS |
|
Scott Power
Higher KVA UPS can run all home applications and other
applications. These UPSs are designed to provide
convenience, comfort and safe power for smooth running
of all home applications and other applications. |
|
FEATURES |
-
Digital Signal
Processing technology
-
Zip-charge
technology for faster charging and longer
battery life
-
Intelligent
Thermal Management for longer life and
higher reliability
-
High frequency
based design for instantaneous sine wave
control
-
Regulated
battery charging from 150V to 280V
-
Audio Alarm ON: Battery low pre-alarm,
battery low, overload & Mains MCB trip
-
Digital display for Input Under Voltage,
Input Over Voltage, Overload, Battery low,
Short Circuit in UPS Mode, Short Circuit in
Mains Mode, Input MCB trip etc.
|
|
|
|
HOUSEHOLD APPLICATIONS |
|
Air Conditioner,
Refrigerator, Microwave, LCD Projector, Plasma
Television, Cooler, Water Pump, Washing Machine |
|
OTHER
APPLICATIONS |
|
Petrol Pumps, Deep
Freezers, Lifts, Small Offices, Nursing Homes, Data
Centers, BPOs' etc. |
|
LOAD CHART |
|
RATING |
5KVA |
6KVA |
10KVA |
|
OPTIONS |
Option 1 |
Option 2 |
Option 3 |
Option 1 |
Option 2 |
Option 1 |
Option 2 |
Option 3 |
|
FAN |
12 |
10 |
5 |
13 |
17 |
12 |
10 |
12 |
|
TUBE LIGHT |
14 |
14 |
7 |
13 |
17 |
15 |
12 |
13 |
|
TELEVISION |
x |
x |
2 |
1 |
2 |
2 |
2 |
2 |
|
AC 1.5 TON |
1 |
x |
x |
1 |
x |
2 |
x |
1 |
|
AC 2 TON |
x |
1 |
1 |
x |
x |
x |
1 |
x |
|
MICRO WAVE |
x |
x |
1 |
x |
1 |
x |
1 |
1 |
|
|
TECHNICAL SPECIFICATIONS* |
|
|
RATING |
5 KVA |
6 KVA |
10 KVA |
|
INPUT AC RANGE |
Regulated UPS Mode |
|
|
Under Voltage |
180 + 5V |
|
Under Voltage
Restoration |
185 + 5V |
|
Over Voltage |
260 + 5V |
|
Over Voltage
Restoration |
255 + 5V |
|
Unregulated UPS Mode |
|
|
Under Voltage |
140 + 5V |
|
Under Voltage
Restoration |
150 + 5V |
|
Over Voltage |
280 + 5V |
|
Over Voltage
Restoration |
270 + 5V |
|
OUTPUT ON UPS MODE |
Maximum Power |
5
KVA |
6
KVA |
10 KVA |
|
Voltage (UPS
Mode) |
SINE WAVE 230 V (Nominal) |
|
Voltage (Mains
Mode) |
Same as Input |
|
Frequency (UPS Mode) |
50 Hz. + 0.5% |
50 Hz. + 1% |
|
Frequency (Mains Mode) |
Same as Input (45-55 Hz.) |
|
Overload |
>110% |
|
BATTERY |
Type |
120 AH - 150 AH Lead Acid Type |
|
Number |
96V |
120V |
180V |
|
Typical Recharge Time |
8 |
10 |
15 |
|
Protection |
LOW BATTERY, REVERSE POLARITY |
|
LED DISPLAY |
|
Input Under Voltage |
MAIN LOW |
|
Input Over Voltage |
MAIN HI |
|
Low Battery Pre-Alarm |
CAUTION LOW BATTERY |
|
Battery Low |
TRIP BATTERY LOW |
|
Overload |
TRIP OVERLOAD |
|
Short Circuit in UPS Mode |
SHORT CIRCUIT |
|
Short Circuit in Mains Mode |
INPUT MCB TRIP |
|
Input MCB Trip |
INPUT MCB TRIP |
|
Over Temperature |
THERMAL SHUTDOWN |
|
ALARMS |
Low Battery
Pre-Alarm |
One Beep
every 10 Seconds |
|
Low Battery |
Continuous |
|
Overload |
Continuous |
|
Short Circuit |
Five Beeps every 2 Seconds |
|
Mains MCB Trip |
One Beep
every 12 Seconds |
|
Over Temperature |
Continuous |
|
ENVIRONMENTAL |
Operating
Temperature |
0-40oC
(32-104oF) |
|
Storage Temperature |
0-40oC
(32-104oF) |
|
Humidity |
0-95% RH
non-condensing |
|
|
* Due to continuous product improvement
technical specifications are subject to change without
prior notice. |
|
|
|
