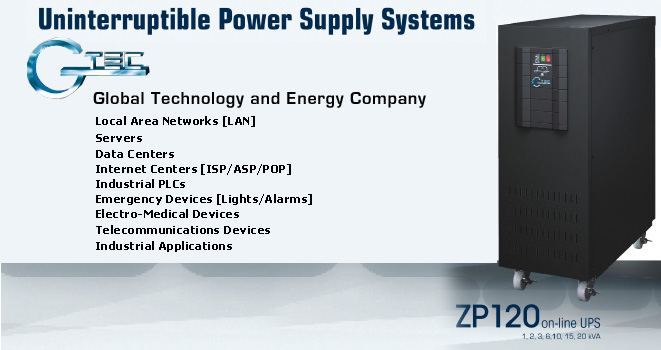

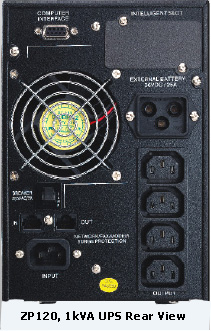

ZP120 UPS 1kVA to 3kVA - DESIGN FEATURES


  • Microprocessor Control Guarantees High Reliability

  • PWM Technology with IGBTs

  • Wide Input Voltage Range, up to115V to 300V

  • Communication Ports Selectable: SMART RS-232 and intelligent Slot forAS-400,                           and SNMP Card

  • Free Download power monitoring software from the internet for Monitoring  UPS Status

  • Optional External Battery Socket Available for Extended Backup Time

  • Cold Start Function

  • Auto Self-testing of Inverter and Battery when turning on the UPS

  • Standard compliance :                                                                                                              EN62040-1-1 (Safety)
    EN50091-2 Class B (Conducted Emission)
    EN61000-3-2 (Harmonic Current)                                                                                               EN61000-3-3 (Voltage Fluctuations and Flicker)
    EN61000-4-2 Level 4 (ESD)                                                                                              EN61000-4-3 Level3 Electromagnetic fields
    EN61000-4-4 Level 4 (EFT)                                                                                                   EN61000-4-2 Level 4 (ESD)                                                                                              EN61000-4-5 Level4 (Lighting surge)
    EN61000-2-2 (Immunity to low frequency signals)



ZP120 6kVA to 20kVA



ZP120 6kVA to 20kVA adopted a DSP micro-processor & further provide “parallel redundancy” feature

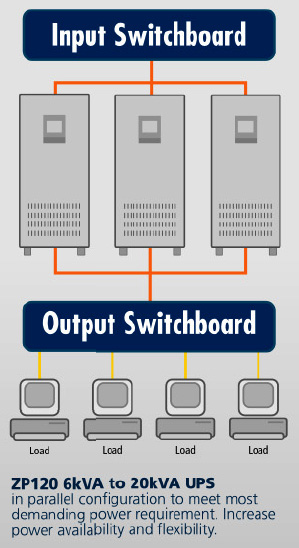

The main advantage of parallel redundancy is capability integration and extra protection against power failure. The topology is two or three equal UPS connected in parallel to expand UPS capability.

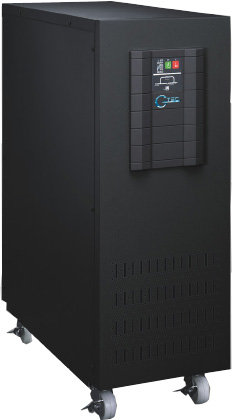

ZP120 6kVA to 20kVA N+1 DESIGN FEATURES

  • Microprocessor Control Guarantees High Reliability

  • PWM Technology with IGBTs

  • Wide Input Voltage Range, up to176V to 276V (10 input) & 304V to 476V (30 input)

  • Communication Ports Selectable: SMART RS-232 and intelligent Slot for AS-400,                           and SNMP Card

  • Free Download power monitoring software from the internet for Monitoring  UPS Status

  • Optional External Battery Socket Available for Extended Backup Time

  • Cold Start Function

  • Auto Self-testing of Inverter and Battery when turning on the UPS

  • Maintenance bypass switch and DSP technology

  • Two-Step Intelligent Charging Mode

  • N+X Parallel Redundancy and Capacity Expansion

  • Standard compliance :                                                                                                              IEC 61000-4-2 Immunity: Electro Static Discharge (ESD)
    IEC 61000-4-3 Immunity: electromagnetic fields
    IEC 61000-4-4 Immunity: transient over voltages (BURST)                                                          IEC 61000-4-5 Immunity: current surges (Surge)
    IEC 62040-2 Class B – Uninterruptible power supply systems (UPS): performance provisions              and test procedures >25A



Parallel Redundancy Feature provides economic power solution for system integration. Furthermore, parallel redundancy feature equally share the load to maximize UPS performance, and more secure UPS continuous operation

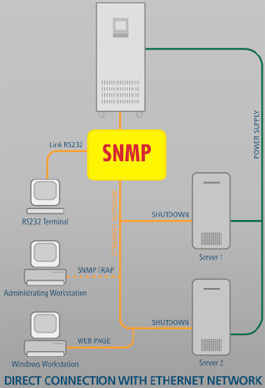

COMMUNICATION & POWER MANAGEMENT SOLUTIONS

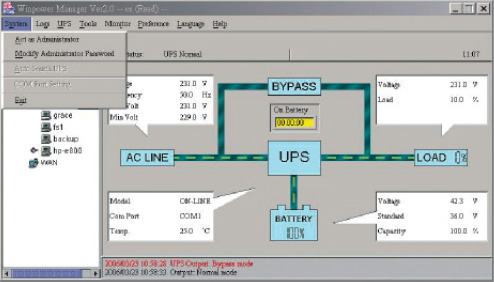

WinPower CD is packed with UPS, and can also be downloaded from the internet. It has the function of remote monitor and control UPS through LAN, warning notifications through broadcast and mobile phone, multi-shutdown PCs, and schedule UPS self-test. This unique software provides complete power protection for computer system during power failure. The software supports lots of O/S including Windows family, Linux, Sun Solaris 7/8/9, Compaq True64, FreeBDS, IBM Aix 4.3x, 5.1x, and HP-UX 11.x. More than that, to offer increased benefits for our customers, we have also released USB version MAC version on the Internet.

  • Power flow display for monitoring UPS status

  • Scheduled system shutdown/restart

  • Scheduled UPS test

  • Warning notifications via Email/Paper

  • Warning notifications via Broadcast

  • Password security protection

  • Remote monitor / Control via LAN

  • Multi-Language versions: English, Germanic, French, Italian, Spanish, Portuguese and Chinese

  • Selectable User Interface (Background)

  • UPS Parameter setting

  • Record logs for analysis

  • Multi-OS supported: Windows Family, Linux, Sun Solaris 7/8/9, IBM AiX 4.3x, 5.1x, Compaq True64, FressBSD, HP_UX 11.x and MAC







*  All the trademarks indicated are the property of their respective owners



ZP120 ON-LINE UPS : 1kVA to 3kVA



TECHNICAL SPECIFICATIONS

MODEL

ZP120  1K

ZP120  2K

ZP120  3K

POWER RATING

1kVA/0.7kW

2kVA/1.4kW

3kVA/2.1kW

INPUT

Voltage

220V/230V/240V

AC High/Low Volt threshold

(Dependent on output load percentage)



80% to 100% load  -  Battery backup at AC mains 160V+5V,

70% to 80% load    -  Battery backup at AC mains 140V+5V,

60% to 70% load    -  Battery backup at AC mains 120V+5V,

0% to 60% load      -  Battery backup at AC mains 110V+5V,

Normalise when AC mains 175V+5V

Input high voltage   -  Battery backup at AC mains 300V+5V

Normalise when AC mains 285V+5V



Frequency

46Hz ~ 54Hz

Power Factor

>0.95

BATTERY/CHARGER

Type

Sealed lead acid maintenance free type

Backup Time @ Typical Load

8 mins

12 mins

8 mins

Optional Ex charger current

7Adc

9.6Adc

OUTPUT

Voltage

220V/230V/240V

Voltage stability

+2%

Crest Factor

3:1

Voltage Distortion

< 3%

Frequency (synchronize mode)

50Hz + 2%

Frequency (battery mode)

50Hz + 0.2%

Output waveform

Sinusoidal

Overload

110 % ~ 150% for 30sec before transfer to bypass, > 150% for 300ms transfer bypass

Efficiency

85%



 88%

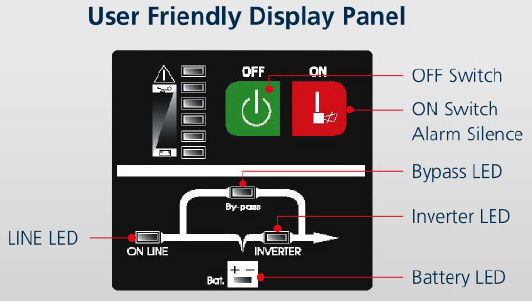

DISPLAY/INTERFACE

Status & indication

Input Healthy / Battery Discharge / Inverter Operation / Bypass Operation / UPS Fault / Load Level Status / Battery Capacity Status

Audible Alarm

YES

Control

UPS On/Off switch, Bypass Transfer/Re-transfer Button

Communication Software

RS232 Serial port. Software support: WIN 98/NT/2K/XP/2003ME, Linux, Sun Solaris

Optional

SNMP Card for Power Management from SNMP Manager and Web browser

PHYSICAL DATA SHEET

Dimension (L x D x H) mm

145 x 400 x 220

192 x 460 x 340

Weight with batteries (kg)

14

35

36

W/o batteries with Ex charger (kg)

7

15

16

Operating Enviornment

0oC ~ 40oC

Relative Humidity

20% ~ 90% non-condensing

Audible Noise level (@1m)

< 45 dBA

< 50 dBA

*  UPS fitted with optional Ex charger is without internal batteries.

    Note: Due to continuous product improvement technical specifications are subject to change without prior notice.



ZP120 ON-LINE UPS : 6kVA to 20kVA



TECHNICAL SPECIFICATION

MODEL

ZP120  6K ZP120  10K ZP120  10K ZP120  15K ZP120  20K
POWER RATING 6kVA/4.2kW 10kVA/7kW 15kVA/10.5kW 20kVA/14kW

INPUT

Input Voltage

220V/230V/240V

380V/400V/415V
Input Voltage threshold



Battery backup @ low mains : 176V + 3%

Return from low mains : 185V + 3%

Battery backup @ hi mains : 276V + 3%

Return from hi mains : 266V + 3%



Battery backup @ low mains : 304V + 3%

Return from low mains : 322V + 3%

Battery backup @ hi mains : 478V + 3%

Return from hi mains : 461V + 3%

Input Frequency

46Hz ~ 54Hz

Input Power Factor

> 0.98

> 0.95

BATTERY

Battery

Inbuilt sealed lead acid battery

Not fitted
Back up time @ typical load 10 mins 8 mins Dependent on external battery size

* Optional EX charger current

(without battery fitted)

4.2Adc

4.2Adc standard

OUTPUT

Voltage

220V/230V/240V

Voltage stability

+1%

Crest Factor

3:1

Voltage Distortion

< 2 % (Linear load)

Frequency (synchronize battery mode)

46Hz to 54 Hz (synchronize) / 50Hz + 0.1%

Load power factor

Support PF from 0.65 lag to 1

Output waveform

Sinusoidal

Transient respond/ Recovery

< 5% (50% - 100% - 50%) within 60ms

Overload

Transfer to bypass: 105% - 130% for 10mins, >130% for 1sec

Efficiency

>88%

DISPLAY/INTERFACE

Status & indication

Input Healthy / Battery Discharge / Inverter Operation / Bypass Operation / UPS Fault / Load Level Status / Battery Capacity Status

Audible Alarm

YES

Control

UPS On/Off switch, Bypass Transfer/Re-transfer Button

Communication Software

RS232 Serial port. Software support: WIN 98/NT/2K/XP/2003ME, Linux, Sun Solaris

Optional

SNMP Card for Power Management from SNMP Manager and Web browser

PHYSICAL DATA SHEET

Dimension (L x D x H) mm

260 x 570 x 717

Weight with batteries (kg)

90

93

NA

W/o batteries with Ex charger (kg)

35

38 39 55 56

Operating Environment

0oC ~ 40oC

Relative Humidity

20% ~ 90% non-condensing

Audible Noise level (@1m)

< 55 dBA

< 55 dBA

Note: Due to continuous product improvement technical specifications are subject to change without prior notice.
