ZP120 LCD |
|
|
|

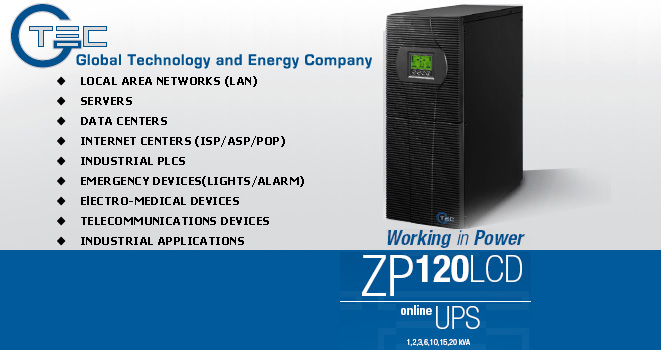

G-TEC is proud to
introduce the upgraded superior ZP120LCD UPS
that can deliver clean, safe and regulated power supply to
protect your critical mission equipment, so as to safeguard
your valuable equipment and critical data from any abnormal
power disturbances, such as surges, blackouts and lightning
strikes.
ZP120LCD UPS power capacity is available from 1kVA to 3KVA,
and 6kVA to 20kVA.
|
|
ZP120 LCD
UPS 1kVA to 3kVA - DESIGN FEATURES |
|
|
-
Microprocessor Control
Guarantees High Reliability
-
PWM Technology with
IGBTs
-
Wide Input Voltage
Range, up to115V to 300V
-

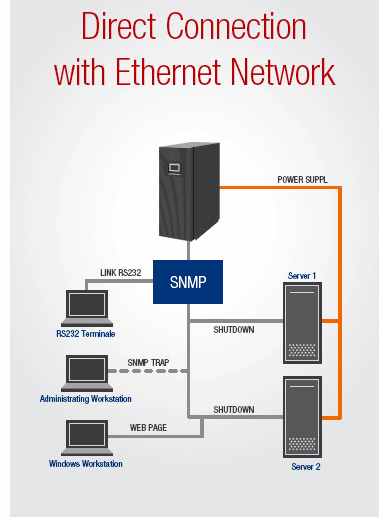

Communication Ports
Selectable: SMART RS-232 and intelligent Slot forAS-400,
and SNMP Card
-
Free Download power
monitoring software from the internet for Monitoring UPS
Status
-
Optional External
Battery Socket Available for Extended Backup Time
-
Cold Start Function
-
Remote EPO control
-
Auto Self-testing System
while turning on the UPS
-
Standard compliance :
EN62040-1-1 (Safety)
EN50091-2 Class B (Conducted
Emission)
EN50091-2 Class B (Radiated
Emission) EN61000-3-2 (Harmonic Current)
EN61000-3-3 (Voltage Fluctuations and Flicker)
EN61000-4-2
Level 4 (ESD)
EN61000-4-3 Level 3 Electromagnetic fields
EN61000-4-4 Level 4 (EFT)
EN61000-4-5 Level 4 (Lighting surge)
EN61000-2-2 (Immunity to low frequency signals)
|
 |
|
|
ZP120 LCD 6kVA to 20kVA
|
|
|
|
ZP120 LCD 6kVA to 20kVA
adopted a DSP micro-processor & further provide

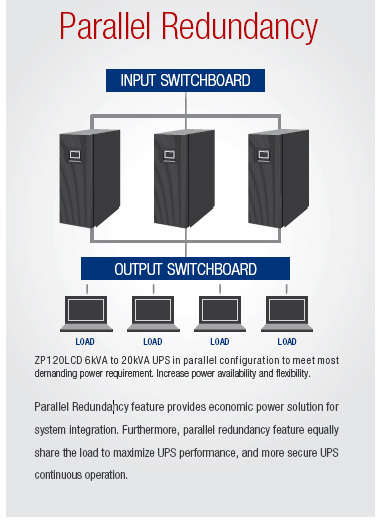

“parallel redundancy” feature |
|
|
|
The main advantage of
parallel redundancy is capability integration and extra
protection against power failure. The topology is two to
three equal UPS connected in parallel to expand UPS
capability. |
|
|
|
DESIGN FEATURES |
-
Microprocessor Control
Guarantees High Reliability
-
PWM Technology with
IGBTs
-
Wide Input Voltage
Range, up to176V to 276V (1Ø input) & 304V to 476V (3Ø
input)
-
Communication Ports
Selectable: SMART RS-232 and intelligent Slot for AS-400,
and SNMP Card
-
Free Download power
monitoring software from the internet for Monitoring UPS
Status
-
Optional External
Battery Socket Available for Extended Backup Time
-
Cold Start Function
-
Remote EPO control
-
Backfeed protection
-
Auto Self-testing System while turning on the UPS
-
Maintenance bypass switch
and DSP technology
-
Two-Step Intelligent
Charging Mode
-
N+X Parallel Redundancy and
Capacity Expansion
-
Standard compliance :
IEC 61000-4-2 Immunity: Electro Static Discharge (ESD)
IEC 61000-4-3 Immunity: electromagnetic fields
IEC 61000-4-4 Immunity: transient over voltages (BURST)
IEC 61000-4-5 Immunity: current surges (Surge)
IEC
62040-2 Class B – Uninterruptible power supply systems
(UPS): performance provisions
and test procedures >25A
|
|
|
|
  |
|
|
|
|
|

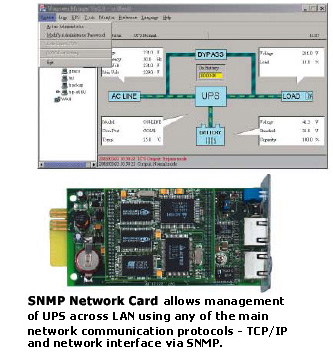

COMMUNICATION & POWER MANAGEMENT SOLUTIONS |
|
|
|
WinPower CD is packed with UPS,
and can also be downloaded from the Internet. It has the
function of remote monitor and control UPS through LAN,
warning notifications through broadcast and mobile phone,
multi-shutdown PCs, and schedule UPS self-test. This unique
software provides complete power protection for computer
system during power failure. The software supports lots of
O/S including Windows family, Linux, Sun Solaris 7/8/9,
Compaq True64, FreeBSD, IBM Aix 4.3x, 5.1x, and HP-UX 11.x.
More than that, to offer increased benefits for our
customers, we have also released USB version MAC version on
the Internet.
|
-
Power flow display for
monitoring UPS status
-
Scheduled system
shutdown/restart
-
Scheduled UPS test
-
Warning notifications via
Email/Pager
-
Warning notifications via
Broadcast
-
Password security
protection
-
Remote monitor / Control
via LAN
-
Multi-Language versions:
English, Germanic, French, Italian, Spanish, Portuguese
and Chinese
-
Selectable User Interface
(Background)
-
UPS Parameter setting
-
Record logs for analysis
-
Multi-OS supported: Windows
Family, Linux, Sun Solaris 7/8/9, IBM AiX 4.3x, 5.1x,
Compaq True64, FressBSD, HP_UX 11.x and MAC
* All the trademarks indicated
are the property of their respective owners |
 |
|
|
TECHNICAL
ASSISTANCE SERVICE |
|
|
- A dedicated CALL
CENTER for connection to the UPService
organization. UPService personnel are always
available and ready to provide advice and assistance
regarding UPS installation, maintenance, fault
finding and repair
- FAST & READY
A fast repair on site is guaranteed through the use
of state-of the-art UPS technology and the
professionalism of the UPService personnel and
Authorized Assistance Centers.
UPService guarantees that failed parts are replaced with original ones,
tested and updated in order to maintain the safety, reliability and operating characteristics of the UPS.
- COMMISSIONING
AND START_UP
UPService can provide assistance during commissioning and start-up of the UPS
equipment on-site with additional training during handover to site personnel.
UPService engineers can also verify site suitability, analyse and advice on potential problems,
and disconnect and relocate equipment. UPService recommend that all hardwired installations are
commissioned by UPService engineers.
-
MAINTENANCE
CONTRACTS can be provided by UPService to minimize
response times periodic inspections to comprehensive
cover including labour and materials.
-
The
TELEGUARD
software package provides remote 24 x 7 UPS
supervision. TeleGuard can interrogate G-TEC UPS
connected to a local telephone line to check on
their operating logs and systems status.
Should the UPS report an alarm condition, the UPService Call Center is immediately notified
and a dedicated customer response activated. Routine site reports can be sent automatically
to customer personnel.
- UPService organizes
regular TECHNICAL TRAINING COURSES for UPS operators
and installers.
|
|
 |
|
|
|
ZP120 LCD 1kVA to 3kVA |
|
|
|
TECHNICAL SPECIFICATION |
|
MODEL |
ZP120LCD 1K |
ZP120LCD 2K |
ZP120LCD 3K |
|
POWER RATING |
1kVA/0.7kW |
2kVA/1.4kW |
3kVA/2.1kW |
|
INPUT |
|
Voltage |
220V/230V/240V |
|
AC High/Low Volt threshold
(Dependent on output load percentage) |
80% to 100% load
- Battery backup at AC mains 160V+5V,
70% to 80% load
- Battery backup at AC mains 140V+5V,
60% to 70% load
- Battery backup at AC mains 210V+5V,
0% to 60% load - Battery backup at AC mains 110V+5V,
Normalize when AC mains
175V+5V
Input high voltage
- Battery backup at AC mains 300V+5V
Normalize when AC mains
285V+5V
|
|
Frequency |
46Hz ~ 54Hz |
|
Power Factor |
>0.95 |
|
BATTERY/CHARGER |
|
Type |
Sealed lead acid
maintenance free type |
|
Backup Time @ Typical Load |
8 mins |
12 mins |
8 mins |
|
Optional Ex charger
current
|
7Adc |
9.6Adc |
|
OUTPUT |
|
Voltage |
220V/230V/240V |
|
Voltage stability |
+2% |
|
Crest Factor |
3:1 |
|
Voltage Distortion |
< 3% |
|
Frequency (synchronize
mode) |
50Hz + 2% |
|
Frequency (battery
mode) |
50Hz + 0.2% |
|
Output waveform |
Sinusoidal |
|
Overload |
110 % ~ 150% for 30sec
before transfer to bypass, > 150% for 300ms transfer
bypass |
|
Efficiency |
|
|
DISPLAY/INTERFACE |
|
Status & Indication |
Input Healthy / Battery
Discharge / Inverter Operation / Bypass Operation /
UPS Fault / Load Level Status / Battery Capacity Status/Measures |
|
Audible Alarm |
YES |
|
Control |
UPS On/Off switch,
Bypass Transfer/Re-transfer Button/Remote EPO |
|
Communication Software |
RS232 Serial port.
Software support: WIN 98/NT/2K/XP/2003ME, Linux, Sun
Solaris |
|
Optional |
SNMP Card for Power
Management from SNMP Manager and Web browser |
|
PHYSICAL DATA SHEET |
|
Dimension (L x D x H)
mm |
145 x 400 x 220 |
192 x 460 x 340 |
|
Weight with batteries (kg) |
14 |
35 |
36 |
|
W/o batteries with Ex charger (kg) |
7 |
15 |
16 |
|
Operating Environment |
0oC ~ 40oC |
|
Relative Humidity |
20% ~ 90%
non-condensing |
|
Audible Noise level
(@1m) |
< 45 dBA |
< 50 dBA |
|
*
UPS fitted with optional Ex charger is without
internal batteries.
Note: Due to continuous product
improvement technical specifications are subject to
change without prior notice. |
|
|
|
|
ZP120LCD
- 6kVA to 20kVA |
|
|
|
TECHNICAL SPECIFICATION |
|
MODEL |
ZP120LCD
6K |
ZP120LCD
10K |
ZP120LCD
10K |
ZP120LCD
15K |
ZP120LCD
20K |
|
POWER RATING |
6kVA/4.2kW |
10kVA/7kW |
15kVA/10.5kW |
20kVA/14kW |
|
INPUT |
|
Voltage |
220V/230V/240V |
380V/400V/415V |
|
Voltage threshold |
Battery backup @ low
mains : 176V + 3%
Return from low mains :
185V + 3%
Battery backup @ hi
mains : 276V + 3%
Return from hi mains :
266V + 3%
|
Battery backup @ low
mains : 304V + 3%
Return from low mains :
322V + 3%
Battery backup @ hi
mains : 478V + 3%
Return from hi mains :
461V + 3% |
|
Frequency |
46Hz to 54Hz |
|
Power Factor |
ZP120LCD 6k & 10k - > 0.98 |
ZP120LCD 10k, 15k & 20k
> 0.95 |
|
BATTERY |
|
Battery |
Inbuilt sealed lead
acid battery |
Not fitted |
|
Back up time @ typical load |
10 mins |
8 mins |
Dependent on external
battery size |
|
* Optional EX charger
current
(without battery fitted) |
4.2Adc |
4.2Adc standard |
|
OUTPUT |
|
Voltage |
220V/230V/240V |
|
Voltage stability |
+1% |
|
Crest Factor |
3:1 |
|
Voltage Distortion |
< 2 % (Linear
load) |
|
Frequency (synchronize
battery mode) |
46Hz to 54 Hz
(synchronize) / 50Hz + 0.1% |
|
Load power factor |
Support PF from 0.65
lag to 1 |
|
Output waveform |
Sinusoidal |
|
Transient respond/
Recovery |
< 5% (50% !i 100% !i 50%)
within 60ms |
|
Overload |
Transfer to bypass:
105% - 130% for 10mins, >130% for 1sec |
|
Efficiency |
>88% |
|
DISPLAY/INTERFACE |
|
Status & Indication |
Input Healthy / Battery
Discharge / Inverter Operation / Bypass Operation /
UPS Fault / Load Level Status / Battery Capacity Status/Measures |
|
Audible Alarm |
YES |
|
Control |
UPS On/Off switch,
Bypass Transfer/Re-transfer Button/remote EPO |
|
Communication Software |
RS232 Serial port.
Software support: WIN 98/NT/2K/XP/2003ME, Linux, Sun
Solaris |
|
Optional |
SNMP Card for Power
Management from SNMP Manager and Web browser |
|
PHYSICAL DATA SHEET |
|
Dimension (L x D x H)
mm |
260 x 570 x 717 |
|
Weight with batteries (kg) |
90 |
93 |
NA |
|
W/o batteries with Ex charger (kg) |
35 |
38 |
39 |
55 |
56 |
|
Operating Environment |
0oC ~ 40oC |
|
Relative Humidity |
20% ~ 90%
non-condensing |
|
Audible Noise level
(@1m) |
< 55 dBA |
< 55 dBA |
|
Note: Due to continuous product
improvement technical specifications are subject to
change without prior notice. |
|
|
|
|
|
