SP 12-100 (12V100AH) |
|
|
|
|
|
|
SP 12-100 is a general
purpose battery with 10
years floating
design life, meet with
IEC, JIS. BS and Eurobat
standard. With
heavy duty grid,
thickness plates,
special additives, RA
series
battery have long and
reliable standby service
life. Our RA Series
batteries keep high
consistent for better
performance in series
usage. |
|
|
|
|
|
|
|
SPECIFICATIONS
|
|
Cells Per Unit |
6 |
|
Voltage Per Unit |
12 |
|
Capacity |
100Ah@10hr-rate to 1.80V per cell @25oC |
|
Weight |
Approx. 30.0 Kg |
|
Max. Discharge Current |
1000A (5 sec) |
|
Internal Resistance |
Approx. 5 mΩ |
|
Operating Temperature Range |
Discharge: - 20oC~60oC
Charge: 0oC~50oC
Storage: - 20oC~60oC |
|
Normal Operating Temperature Range |
25oCą5oC |
|
Float charging Voltage |
13.6 to 13.8 VDC/unit Average at 25oC |
|
Recommended Maximum Charging Current Limit |
30 A |
|
Equalization and Cycle Service |
14.6 to 14.8 VDC/unit Average at 25oC |
|
Self Discharge |
Batteries can be stored for more than 6 months
at 25oC.
Self-discharge ratio less than 3% per month at 25oC.
Please charge batteries before using.
|
|
Terminal |
Terminal F5/F12 |
|
Constainer Material |
A.B.S. (UL94-HB), Flammability resistance of UL94-V1
can be available upon request
|
|
|
* Due to continuous product improvement
technical specifications are subject to change without
prior notice. |
|

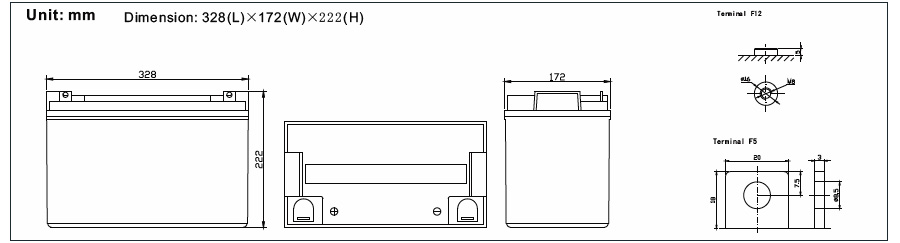

DIMENSIONS |
|
|
|
Constant Current Discharge Characteristics : A(25oC) |
|
F.V/Time |
5MIN |
10MIN |
15MIN |
30MIN |
1HR |
2HR |
3HR |
4HR |
5HR |
8HR |
10HR |
20HR |
|
9.60V |
320.7 |
226.9 |
181.4 |
112.7 |
65.00 |
38.89 |
26.88 |
22.03 |
18.03 |
12.42 |
10.50 |
5.777 |
|
10.0V |
311.4 |
215.8 |
177.7 |
110.8 |
64.70 |
38.60 |
26.78 |
21.93 |
17.93 |
12.32 |
10.40 |
5.672 |
|
10.2V |
302.2 |
208.2 |
174.9 |
109.8 |
64.10 |
38.31 |
26.57 |
21.83 |
17.82 |
12.22 |
10.30 |
5.567 |
|
10.5V |
271.3 |
192.1 |
166.5 |
107.1 |
63.50 |
38.02 |
26.47 |
21.62 |
17.61 |
12.12 |
10.20 |
5.462 |
|
10.8V |
244.9 |
175.2 |
153.5 |
102.4 |
62.00 |
37.33 |
25.75 |
21.11 |
17.29 |
11.92 |
10.10 |
5.357 |
|
11.1V |
209.1 |
156.6 |
137.7 |
95.91 |
58.90 |
35.68 |
24.62 |
20.09 |
16.55 |
11.41 |
9.796 |
5.041 |
|
|
Constant Power Discharge Characteristics : W(25oC) |
|
F.V/Time |
5MIN |
10MIN |
15MIN |
30MIN |
1HR |
2HR |
3HR |
4HR |
5HR |
8HR |
10HR |
20HR |
|
9.60V |
3317 |
2416 |
1996 |
1284 |
751.1 |
458.4 |
319.9 |
262.6 |
215.1 |
148.3 |
125.5 |
69.26 |
|
10.0V |
3251 |
2342 |
1964 |
1269 |
749.3 |
456.0 |
320.0 |
262.3 |
214.6 |
147.6 |
124.7 |
68.06 |
|
10.2V |
3214 |
2280 |
1941 |
1260 |
743.5 |
453.3 |
318.6 |
261.7 |
213.9 |
146.6 |
123.6 |
66.80 |
|
10.5V |
2926 |
2123 |
1852 |
1230 |
736.8 |
450.0 |
317.4 |
259.3 |
211.3 |
145.4 |
122.4 |
65.54 |
|
10.8V |
2665 |
1957 |
1712 |
1779 |
723.2 |
444.2 |
308.7 |
253.4 |
207.5 |
143.0 |
121.2 |
64.28 |
|
11.1V |
2341 |
1770 |
1541 |
1108 |
692.3 |
427.7 |
295.4 |
241.1 |
198.6 |
136.9 |
117.6 |
60.50 |
|
|
All mentioned values are
average values. |
|
RA 12-100
12V100Ah
|
  |
|
|
  |
|
|
|
Capacity Factors With Different Temperature |
|
|
|
Battery Type |
-20oC |
-10oC |
0oC |
5oC |
10oC |
20oC |
25oC |
30oC |
40oC |
45oC |
|
GEL
Battery |
6V & 12V |
50% |
70% |
83% |
85% |
90% |
98% |
100% |
102% |
104% |
105% |
|
2V |
60% |
75% |
85% |
88% |
92% |
99% |
100% |
103% |
105% |
106% |
|
AGM
Battery |
6V & 12V |
46% |
66% |
76% |
83% |
90% |
98% |
100% |
103% |
107% |
109% |
|
2V |
55% |
70% |
80% |
85% |
92% |
99% |
100% |
104% |
108% |
110% |
|
|
|
|
Discharge Current VS. Discharge Voltage
Maintenance & Cautions
|
|
|
  |
|
|
|
