LUM 12V 200AH @ 20HR
RATE |
 |
|
 |
|
|
|
|
|
|
|
BTTERY
CONSTRUCTION |
|
|
|
Component |
Positive Plate |
Negative Plate |
Container |
Cover |
Safety Valve |
Terminal |
Separator |
Electrolyte |
|
Raw
Material |
Lead
Dioxide |
Lead |
ABS |
ABS |
Rubber |
Lead
Alloy |
AGM |
Sulfuric Acid |
|
|
|
|
GENERAL
FEATURES |
|
|
-
Absorbent Glass Mat (AGM) technology for
efficient gas recombination & freedom from
electrolyte maintenance or water adding
-
Not restricted
for air transport-complies with IATA/ICAO
Special Provision A 67
-
Can be mounted in any orientation *
-
Long service
life, float or cyclic application.
-
Maintenance
free operation
-
Low
self-discharge.
|
|
* Except up side down |
|

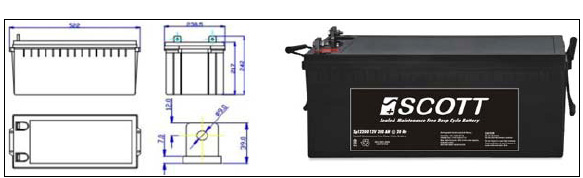

DIMENSIONS &
WEIGHT |
|
|
|
Length (mm/inch) |
: |
522/20.55 |
|
Width (mm/inch) |
: |
238/9.38 |
|
Height (mm/inch) |
: |
217/8.54 |
|
Total Height (mm/inch) |
: |
242/9.53 |
|
Approx. Weight (Kg/lbs) |
: |
54/120 |
|
|
|
|
PERFORMANCE CHARACTERISTICS
|
|
Nominal Voltage |
12V |
|
Design Life |
3 ~ 4 years |
|
Nominal Capacity 80.6oF
(27oC) |
|
|
20 hour rate (10
A, 10.50 V) |
200Ah |
|
1 hour rate (120 A,
10.50 V) |
120 Ah |
|
Internal Resistance |
|
|
Fully Charged
Battery 80.6oF (27oC) |
4 mΩ |
|
Self Discharge |
3% of capacity
declined per month at 20oC (average)
|
|
Operating Temperature Range |
-20~60oC |
|
Max. Discharge Current
80.6oF (27oC) |
1700 A (5s) |
|
Short Circuit
Current |
1550A |
|
Charge Methods |
Constant Voltage
Charge 80.6oF (27oC) |
|
Cycle Use |
14.10-14.40V |
|
Maximum charging current |
58A |
|
Temperature
compensation |
-5mV/oC |
|
Standby use |
13.60 ~ 13.80 V |
|
Temperature
compensation |
-3mV/oC |
|
|
Note: Due to continuous product
improvement technical specifications are subject to
change without prior notice. |
|
|
|
DISCHARGE CONSTANT CURRENT PER MODULE (AMPERES
AT 80.6oF/27oC) |
|
EMV |
10MIN |
15MIN |
20MIN |
30MIN |
1HR |
2HR |
3HR |
4HR |
5HR |
6HR |
8HR |
10HR |
20HR |
|
9.64 |
502 |
384 |
302 |
230 |
131 |
75.2 |
53.8 |
42.0 |
35.6 |
30.6 |
23.4 |
20.0 |
10.6 |
|
10.2 |
478 |
386 |
288 |
218 |
125 |
72.2 |
51.4 |
40.4 |
34.0 |
30.0 |
22.8 |
19.2 |
10.3 |
|
10.5 |
454 |
326 |
278 |
210 |
122 |
71.0 |
50.6 |
39.6 |
33.4 |
29.6 |
22.6 |
18.8 |
10.0 |
|
10.8 |
430 |
308 |
206 |
200 |
120 |
69.4 |
49.0 |
35.6 |
31.6 |
27.2 |
22.4 |
18.6 |
9.86 |
|
* EMV - End Module Voltage |
|
|
|
|
DISCHARGE CONSTANT CURRENT PER MODULE (WAAT AT
80.6oF/27oC) |
|
EMV |
10MIN |
15MIN |
20MIN |
30MIN |
1HR |
2HR |
3HR |
4HR |
5HR |
6HR |
8HR |
10HR |
20HR |
|
9.60 |
6024 |
4608 |
3624 |
2760 |
1572 |
902.4 |
645.6 |
504.0 |
427.2 |
367.2 |
280.8 |
240.0 |
127.2 |
|
10.2 |
5736 |
4416 |
3456 |
2616 |
1500 |
866.4 |
616.8 |
484.8 |
408.0 |
360.0 |
273.6 |
230.4 |
123.6 |
|
10.5 |
5448 |
3912 |
3336 |
2520 |
1464 |
852.0 |
607.2 |
475.2 |
400.8 |
355.2 |
271.2 |
225.6 |
120.0 |
|
10.8 |
5160 |
3696 |
3192 |
2400 |
1440 |
832.8 |
588.0 |
427.2 |
379.2 |
326.4 |
268.8 |
223.2 |
118.32 |
|
* EMV - End Module Voltage |
|
|
|
|
