LUM 12V 165AH @ 20HR RATE
|
 |
|
|
|
|
 |
|
|
|
|
|
|
|
BTTERY
CONSTRUCTION |
|
|
|
Component |
Positive Plate |
Negative Plate |
Container |
Cover |
Safety Valve |
Terminal |
Separator |
Electrolyte |
|
Raw
Material |
Lead
Dioxide |
Lead |
ABS |
ABS |
Rubber |
Lead
Alloy |
AGM |
Sulfuric Acid |
|
|
|
|
GENERAL
FEATURES |
|
|
-
Absorbent Glass Mat (AGM) technology for
efficient gas recombination.
-
Not restricted
for air transport-complies with IATA/ICAO
Special Provision A 67
-
Can be mounted in any orientation *
-
Long service
life, float or cyclic application.
-
Maintenance
free operation
-
Low
self-discharge.
|
|
* Except up side down |
|

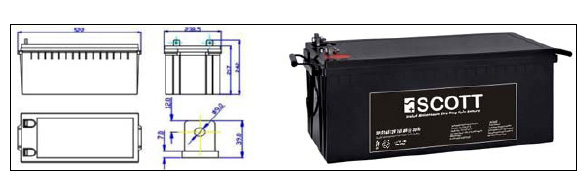

DIMENSIONS &
WEIGHT |
|
|
|
Length (mm/inch) |
: |
522/20.55 |
|
Width (mm/inch) |
: |
238/9.38 |
|
Height (mm/inch) |
: |
217/8.54 |
|
Total Height (mm/inch) |
: |
242/9.53 |
|
Approx. Weight (Kg/lbs) |
: |
52/114.60 |
|
|
|
|
PERFORMANCE CHARACTERISTICS
|
|
Nominal Voltage |
12V |
|
Design Life |
4 ~ 5 years |
|
Nominal Capacity 80.6oF
(27oC) |
|
|
20 hour rate (8.25
A, 10.50 V) |
165Ah |
|
1 hour rate (111 A,
10.50 V) |
111 Ah |
|
Internal Resistance |
|
|
Fully Charged
Battery 80.6oF (27oC) |
3.6 mΩ |
|
Self Discharge |
3% of capacity
declined per month at 20oC (average)
|
|
Operating Temperature Range |
-20~60oC |
|
Max. Discharge Current
80.6oF (27oC) |
1250 A (5s) |
|
Short Circuit
Current |
2700A |
|
Charge Methods |
Constant Voltage
Charge 80.6oF (27oC) |
|
Cycle Use |
14.10-14.40V |
|
Maximum charging current |
50A |
|
Temperature
compensation |
-30mV/oC |
|
Standby use |
13.60 ~ 13.80 V |
|
Temperature
compensation |
-20mV/oC |
|
|
Note: Due to continuous product
improvement technical specifications are subject to
change without prior notice. |
|
|
|
DISCHARGE CONSTANT CURRENT PER MODULE (AMPERES
AT 80.6oF/27oC) |
|
EMV |
10MIN |
15MIN |
20MIN |
30MIN |
1HR |
2HR |
3HR |
4HR |
5HR |
6HR |
8HR |
10HR |
20HR |
|
9.6 |
64.97 |
355.20 |
279.97 |
213.37 |
124.57 |
69.52 |
49.78 |
38.91 |
32.96 |
28.37 |
21.75 |
18.50 |
9.75 |
|
10.2 |
442.77 |
340.40 |
266.40 |
202.27 |
118.40 |
66.82 |
47.65 |
37.34 |
31.51 |
27.81 |
21.08 |
17.72 |
9.53 |
|
10.5 |
420.57 |
302.17 |
257.77 |
194.87 |
114.70 |
65.70 |
46.87 |
36.66 |
30.95 |
27.36 |
20.97 |
17.38 |
9.25 |
|
10.8 |
398.37 |
284.90 |
246.67 |
185.00 |
112.91 |
64.25 |
45.41 |
34.65 |
29.26 |
26.12 |
20.74 |
17.27 |
9.08 |
|
* EMV - End Module Voltage |
|
|
|
|
DISCHARGE CONSTANT CURRENT PER MODULE (WAAT AT
80.6oF/27oC) |
|
EMV |
10MIN |
15MIN |
20MIN |
30MIN |
1HR |
2HR |
3HR |
4HR |
5HR |
6HR |
8HR |
10HR |
20HR |
|
9.6 |
4847.0 |
3736.2 |
3108.0 |
2345.6 |
1375.7 |
798.3 |
580.8 |
454.1 |
387.9 |
319.5 |
251.2 |
206.3 |
113.2 |
|
10.2 |
4506.2 |
3633.8 |
3026.2 |
2308.6 |
1354.4 |
777.0 |
568.5 |
446.2 |
373.4 |
311.7 |
243.3 |
207.4 |
111.0 |
|
10.5 |
4173.2 |
3478.0 |
2886.0 |
2227.8 |
1332.0 |
754.6 |
550.5 |
427.2 |
363.3 |
305.0 |
239.9 |
202.9 |
108.1 |
|
10.8 |
3907.4 |
3300.8 |
2856.8 |
2204.3 |
1317.4 |
729.9 |
534.8 |
418.2 |
348.7 |
300.5 |
237.7 |
201.8 |
105.4 |
|
* EMV - End Module Voltage |
|
|
|
|
