G-TEC is proud to introduce the superior AP 128 UPS, 19" Rack Mounted type and Modular UPS, which can be configured in N+X for the most demanding application.

They are both designed to deliver clean, safe and regulated power supply to protect your critical mission equipment, so as to safeguard your valuable equipment and critical data from any abnormal power disturbances, such as surges, spikes, blackouts and lightning strikes.

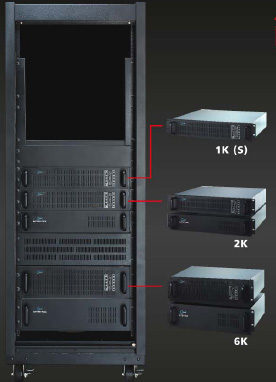

AP128 19" RACK MOUNTED



AP128 Rack Mount UPS make use of the unique AC-DC conversioncircuitry to prevent line power failure, power sags, power surges, brownouts, line noise and high voltage spikes; frequency variation,switching transients and line harmonic distortion.



With the use of outstanding IGBT as the power conversation component, the operating frequency of the inverter of UPS is capable of reaching tens of KHz, due to the high frequency operating characteristics of IGBT. Higher working efficiency of  the inverter also improves the overall efficiency of UPS. Also, high switching frequency reduces UPS noise as well.

  • Microprocessor Control Guarantees High Reliability

  • PWM Technology with IGBTs

  • Wide Input Voltage Range, up to115V to 300V

  • Communication Ports is provided, SMART RS-232 and intelligent Slot forAS-400,                           or SNMP Card to ease the control and monitor of UPS

  • Free Download power monitoring software from the internet for Monitoring  UPS Status

  • Optional External Battery Socket Available for Extended Backup Time

  • Cold Start Function

  • Auto Self-testing of Inverter and Battery when turning on the UPS to achieve  optimum   performance

  • Modular design for 1kVA to3kVA which helps in faster MTTR

  • DSP technology for 6KVA which can integrate all intelligent functions, less components and parts which helps to reduce UPS size and weight. Also, UPS efficiency and power density increase

  • Two step charging system is available for 6KVA. It helps to reduce the charging time to recover the battery energy

  • Standard Compliance :                                                                                                            EN 61000-4-2 Level 3 Immunity: Electro Static Discharge (ESD)
    EN 61000-4-3 Level 2 Immunity: electromagnetic fields
    EN 61000-4-4 Level 3 Immunity: transient over voltages (BURST)                                                EN 61000-4-5 Level 3 Immunity: current surges (Surge)
    EN61000-2-2 Immunity: to low frequency signals                                                               EN62040-1-1: 2003 (Safety)                                                                                           EN50091-2: Class B (Conducted emission)
    EN61000-3-2: Harmonic current (1kVA to 3kVA)

AP128 RACK MOUNTED ON-LINE UPS SPECIFICATION



TECHNICAL SPECIFICATION

MODEL

RM 1K

RM 2K

RM 3K

RM 6K

POWER RATING

1kVA/0.7kW

2kVA/1.4kW

3kVA/2.1kW

6kVA/4.2kW

INPUT

Voltage

220V/230V/240V

AC High/Low Volt threshold

(Dependent on output load percentage)

0% to 60% load      -  Battery backup at AC mains 110V+5V

60% to 70% load    -  Battery backup at AC mains 120V+5V

70% to 80% load    -  Battery backup at AC mains 140V+5V

80% to 100% load  -  Battery backup at AC mains 160V+5V

Normalise when AC mains 175V+5V

Input high voltage   -  Battery backup at AC mains 300V+5V

Normalise when AC mains 285V+5V



Battery backup @ low mains:

176V+3%

Return from low mains:

185V+3%



Battery backup @ hi mains:

276V+3%

Return from hi mains:

266V+3%

Frequency

46Hz ~ 54Hz

Power Factor

>0.95

>0.98

BATTERY/CHARGER

Type

Sealed lead acid maintenance free type

Backup Time @ Typical Load

8 mins

12 mins

8 mins

10 mins

Optional Exchanger current

(without battery fitted)

7Adc

9.6Adc

4.2Adc

OUTPUT

Voltage

220V/230V/240V

Voltage stability

+2%

Crest Factor

3:1

Voltage Distortion

<3%

Frequency (synchronise mode)

50Hz + 4%

Frequency (battery mode)

RM 1K, RM 2K & RM 3K - 50Hz + 0.2%

RM 6K - 50Hz + 0.05%

Outout waveform

Sinusoidal

Overload

110 % ~ 150% for 30sec before transfer to bypass, > 150% for 300ms transfer bypass

Efficiency

RM 1K & 2K - 85%

RM 3K - 88%

RM 6K - >88%

DISPLAY/INTERFACE

Status & indication

Input Healthy / Battery Discharge / Inverter Operation / Bypass Operation / UPS Fault / Load Level Status / Battery Capacity Status

Audible Alarm

YES

Control

UPS On/Off switch, Bypass Transfer/Re-transfer Button

Communication Software

RS232 Serial port. Software support: WIN 98/NT/2K/XP/2003ME, Linux, Sun Solaris

Optional

SNMP Card for Power Management from SNMP Manager and Web browser

PHYSICAL DATA SHEET

Dimension (L x D x H) mm

482 x 450 x 2U (With battery)

482 x 450 x 2U (UPS)

482 x 450 x 2U (Batt)

482 x 450 x 3U (UPS)

482 x 450 x 3U (Batt)

Weight with batt (kg)

17

11 (UPS)

28 (Battery)

12 (UPS)

28 (Battery)

19 (UPS)

65 (Battery)

With Ex charger, no battery (kg)

9

12

16

N.A.

Operating Enviornment

0oC ~ 40oC

Relative Humidity

20% ~ 90% non-condensing

Audible Noise level (@1m)

< 45 dBA

< 50 dBA

< 55 dBA

Note: Due to continuous product improvement technical specifications are subject to change without prior notice.

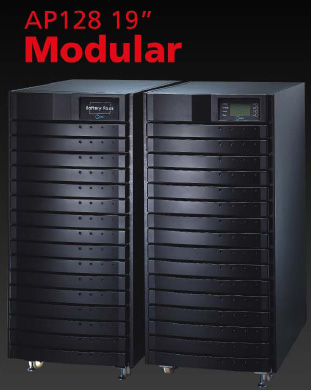

AP128 19" MODULAR



AP128 Modular UPS is a scalable single phase & three-phase with double-conversion uninterruptible power supply which is specially designed to meet the demands of corporation.



It can be configured to parallel redundancy which provides the maximum reliability and delivers power output per modules from 4kVA to 24kVA.

For unique parallel capacity system, adding an extra UPS power module upgrades the load

capacity for longer run-times or to add N+X parallel redundancy as well.

Configuration includes display module and optional battery charger module, With up to six

UPS modules, operating independently. If any one of the UPS fails, the load is instantaneously redistributed among the remaining UPS modules, and  defective UPS module is automatically

taken off-line from the system. It also provides easy setup and optional external battery bank

to upgrade battery runtime.

That gives our customers increased flexibility and reliability to maximum the power, and is very cost-effective to upgrade the system without a large investment.

  • Modules are available in 4kVA, 8kVA, 12kVA, 16kVA, 20kVA, 24kVA

  • N+X Parallel Redundancy is achieved by adding

  • Digital Signal Processor & Pure Sinewave Output Design with Multiple Communication Ports, increasing flexibility, functionality & reliability

  • Scalable On-Line Three Phase or single Phase Input & single Phase Output

  • Modular Design with Hot Swappable Modules

  • LCD Display design

  • Compact & Light Weight with screwless design

  • Additional External Battery Pack

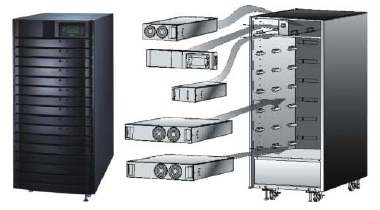

MODULAR DESIGN WITH HOT SWAPPABLE MODULES & 19” RACK MOUNT DESIGN



Modular design for 6 modules redundancy is a key flexibility and an ideal way to provide the highest quality online power protection for mission critical installations from 4kVA to 24kVA.



The modules can be hot-swapped and enabled true continuity of power to the load without any interruption of service. It also designs for 19” rack mount.

LCD DISPLAY DESIGN




The AP128 LCD display provides user-friendly menu control and delivers messages to the ability to manage, configure, control, and diagnose the

UPS directly.

And it connects with LCD modules for monitoring various UPS parameters such as input and output voltages, current frequency, power factor and

phase form. This LCD module is suitable for any make of online

UPS systems.

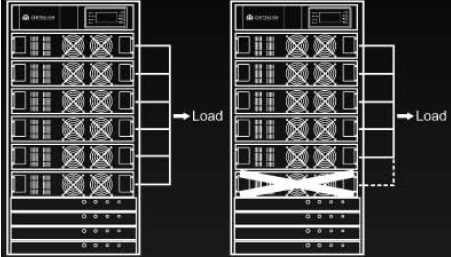

N+X PARALLEL REDUNDANCY IS ACHIEVED BY ADDING UP EXTRA UPS POWER MODULES



Parallel redundancy feature among UPS has been used as a way of delivering higher levels of reliability and load sharing. If one UPS power module goes faulty for any reason, there are other power modules to assume the load.


The UPS power modules can be hot-swapped out without interrupting

the supply of the load. On the other hand, in the parallel capacity and

added an unlimited battery packs allowing a seamless growth path as needs change. This approach is cost-effective and essential for mission critical applications, or in demanding environment.

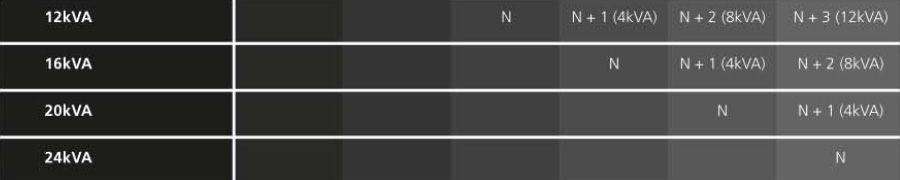

N+X REDUNDANCY CAPACITY

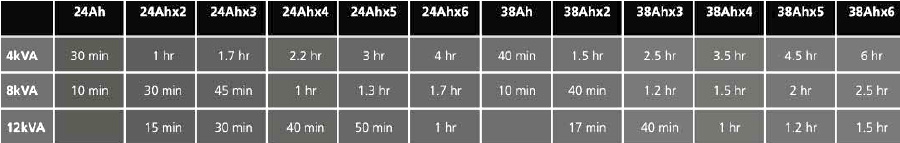

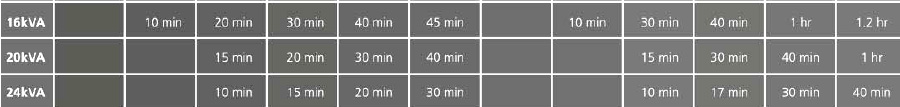

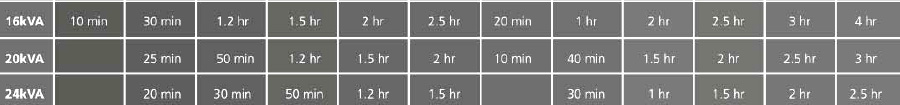

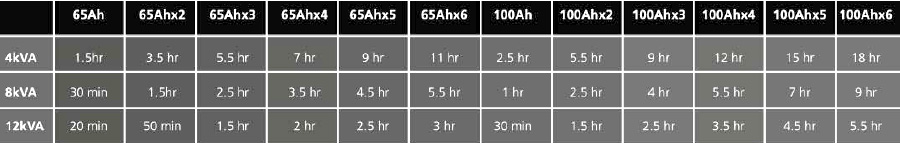

BATTERY CAPACITY VS BACKUP TIME

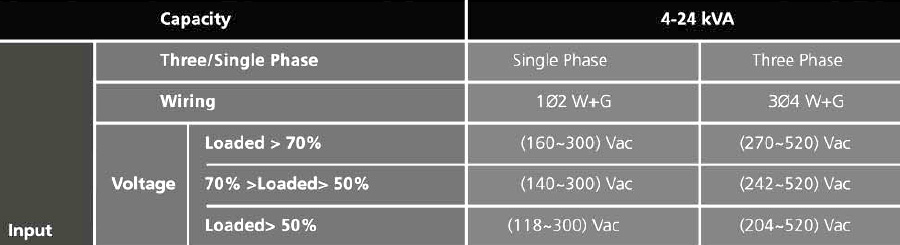

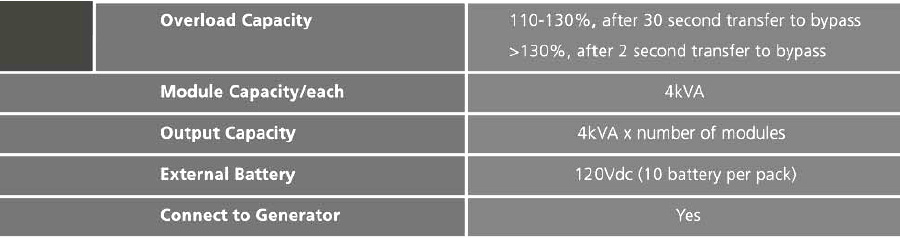

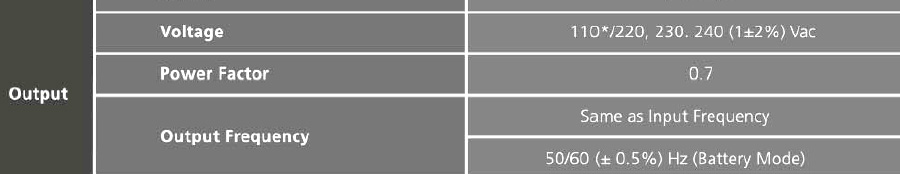

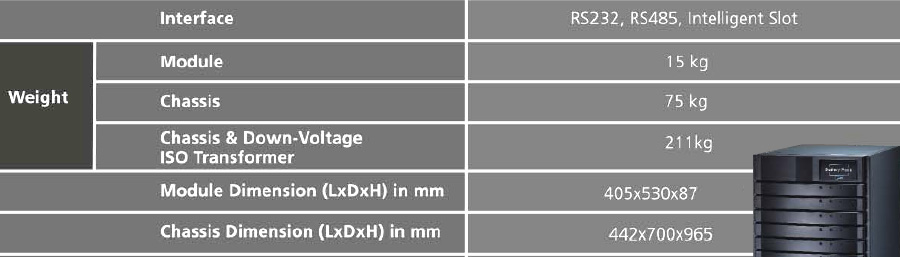

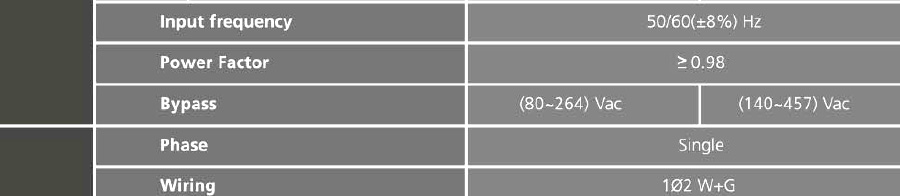

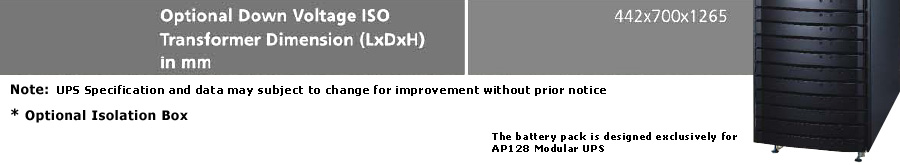

AP128 MODULAR ON-LINE UPS SPECIFICATION





TECHNICAL

ASSISTANCE

SERVICES



UPService, our technical

assistance facility uses highly

trained engineers to provide a

reliable and competent technical

support and after sales service



UPService can provide customers with:


  • A dedicated CALL CENTER for connection to the UPService organization. UPService personnel are always available and ready to provide advice and assistance regarding UPS installation, maintenance, fault finding and repair


  • FAST & READY
    A fast repair on site is guaranteed through the use of state-of the-art UPS technology and the professionalism of the UPService personnel and Authorized Assistance Centers.

    UPService guarantees that failed parts are replaced with original ones, tested and updated in order to maintain the safety, reliability and operating characteristics of the UPS.
  • COMMISSIONING AND START_UP
    UPService can provide assistance during commissioning and start-up of the UPS equipment on-site with additional training during handover to site personnel.

    UPService engineers can also verify site suitability, analyse and advice on potential problems, and disconnect and relocate equipment. UPService recommend that all hardwired installations are commissioned by UPService engineers.
  • MAINTENANCE CONTRACTS can be provided by UPService to minimize response times periodic inspections to comprehensive cover including labour and materials.

  • The TELEGUARD software package provides remote 24 x 7 UPS supervision. TeleGuard can interrogate G-TEC UPS connected to a local telephone line to check on their operating logs and systems status.

    Should the UPS report an alarm condition, the UPService Call Center is immediately notified and a dedicated customer response activated. Routine site reports can be sent automatically to customer personnel.

  • UPService organizes regular TECHNICAL TRAINING COURSES for UPS operators and installers.

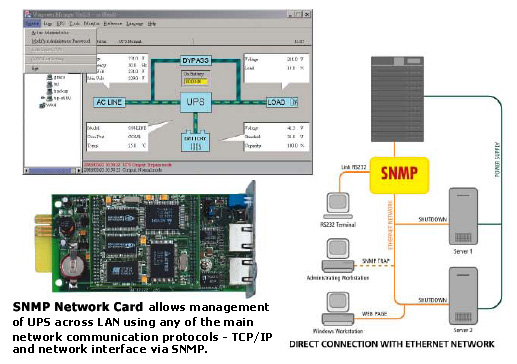

COMMUNICATION AND POWER MANAGEMENT SOLUTIONS



WinPower CD is packed with UPS, and can also be downloaded from the internet. It has the function of remote monitor and control UPS through LAN, warning notifications through broadcast and mobile phone, multi-shutdown PCs, and schedule UPS self-test. This unique software provides complete power protection for computer system during power failure. The software supports lots of O/S including Windows family, Linux, Sun Solaris 7/8/9, Compaq True64, FreeBSD, IBM Aix 4.3x, 5.1x and HP-UX 11.x. More than that, to offer increased benefits for our customers, we have also released USB version MAC version on the Internet.


  • Power flow display for monitoring UPS status

  • Scheduled system shutdown/restart

  • Scheduled UPS test

  • Warning notification via E-mail / Pager

  • Warning notification via Broadcast

  • Password security protection

  • Remote Monitor / Control via LAN

  • Multi-language versions: English, Germanic, French, Italian, Spanish, Portuguese and Chinese

  • Selectable User Interface (Background)

  • UPS Parameter setting

  • Record logs for analysis

  • Multi-OS supported: Windows Family, Linux, Sun Solaris 7/8/9, Compaq True64, FreeBSD, IBM Aix 4.3x, 5.1x and HP-UX 11.x.
