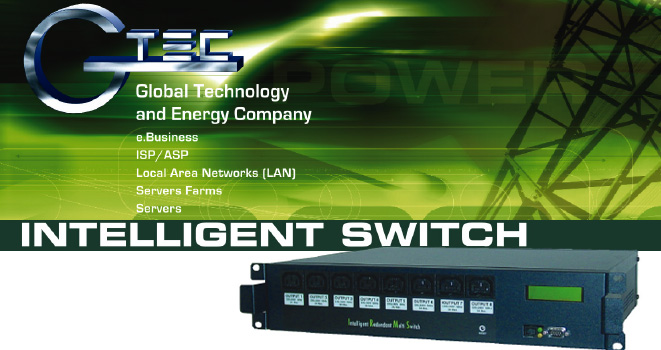

INTELLIGENT SWITCH improves electrical supply continuity. The principle of operation guarantees a higher reliability level than that achieved using a single UPS (on-line with automatic bypass) or several UPS in parallel



PRINCIPLE OF OPERATION



The INTELLIGENT SWITCH provides electrical distribution and remote management for up to eight network users, powered from either one or two direct mains supplies or UPS or a combination of both.



INTELLIGENT SWITCH can connect each user (up to eight, each with a maximum power demand not greater than 3A), to either of the two power sources (A and B). Load demand is shown on the LCD. See "principle of operation" diagram.



PROTECTION AGAINST POWER SUPPLY FAILURES



If one of the two power sources fails or falls outside specification, INTELLIGENT SWITCH  will transfer the connected loads to the second power source (switching is instantaneous even if the two sources are not in phase).



PROTECTION AGAINST FAULTS WITH THE LOAD



If a fault occurs with one of the loads (for example due to a short-circuit or overload), INTELLIGENT SWITCH  will disconnect the load to prevent disruption to the others.



CHARACTERISTICS


  • Full protection against mains failures and load faults.

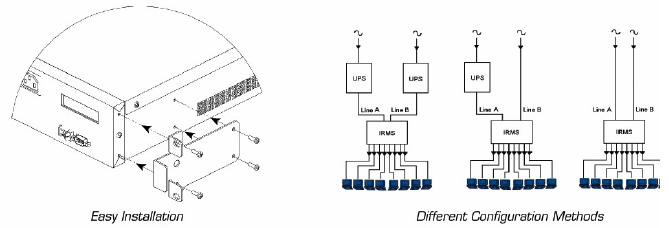

  • Flexible power sources. INTELLIGENT SWITCH can be powered from 2 different sources: 2 mains supplies, 2 UPS or a combination of both.       [Note that the UPS can be of a different size]

  • Designed for installation in a 19" rack-mount cabinet.

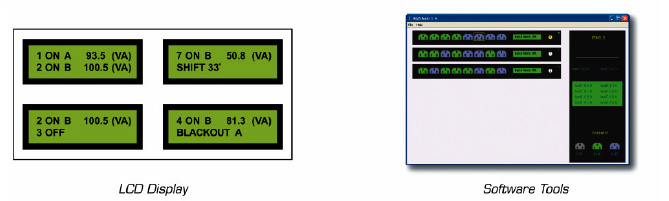

  • LCD to provide measurement/alarms/states information.

  • Remote monitoring serial interface.

  • No signal connection is required between INTELLIGENT SWITCH and the power sources or supplied hardware.

  • Configuration software provide as standard.



TECHNICAL  SPECIFICATIONS

Input Voltage [V]

Min. 180Vac [RMS] single-phase with one line supplying, 50/60Hz



Max. 265Vac [RMS] single-phase with two line supplying, 50/60Hz

Maximum load each output [A]

8 x 4A / 3 x 16A

Maximum load each input [A]

16A / 20A

Output voltage [V]

that of the line input voltage chosen

Mean relay intervention time [ms]

8

Operating conditions

Elevation max, 3,000 m [10,000ft] / <90% non-condensing humidity / 0 - 40oC

Storage conditions

Elevation max, 15,000 m [50,000ft] / 0 - 45oC

Audible noise at 1m [3ft]

<25dBA

Communication ports

1 RJ-45 10BASE - T for SNMP network adapter version



1 DB9 - F RS232 for serial port RS232 version

Casing index of protection

IP20

Safeguards

Overload

Input sockets

2 IEC [16A] / 20A connector

Circuit breaker

16A for each input socket

Output sockets

8 IEC 320 [10A] / 20A connector

Weight [Kg]

5

Rack measurements

2U - 19"

Depth

360 mm

Standard compliance

CEI / EN 50091-1-1 / EN 50091-2 A LEV / CEI 74-v2 / EN 60950

Note: Due to continuous product improvement technical specifications are subject to change without prior notice.
