SR 10-120 series



SR10-120 is ideal for the protection of critical information and telecommunications networks which cannot run the risk of being powered from a poor quality electrical supply.


The SR10-120 series is available in 10-12-15-20 kVA three-phase and single-phase input and single-phase output models, and 10-12-15-20-30-40 and 100-120 kVA three-phase input and output models, with double conversion on-line technology according to the VFI-SS-111 classification, as defined by the IEC EN 62040-3 standard.


SR10-120 has been designed and manufactured using state-of-the-art technologies in order to deliver maximum protection for critical users, a
zero impact on the mains power supply and a high operating efficiency.


The high level of flexibility at the design stage means that there is full compatibility both with three-phase power and with single-phase sources,
thus eliminating any critical factors in the connection between UPS and system.



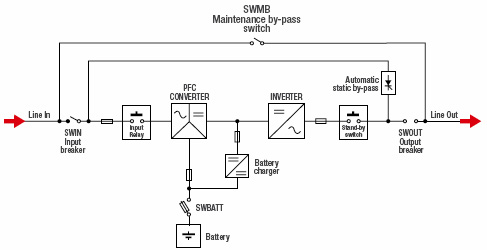

ZERO IMPACT SOURCE





The superior technology of a SR10-120 allows

it be used where the site mains power supply

is limited in capacity, or has an on-site generator

and/or loads that generate current harmonic

problems. SR10-120 is designed to have a

zero impact on its upstream power supply

(mains or generator).




MAIN FEATURES


  • Reliable, filtered, stabilized and regulated sine wave output (double  on-line conversion technology VFI according to EN50091-3 specifications) with filters for atmospheric disturbance suppression

  • High reliability: IG BT Technology in rectifier and inverter, high frequency PWM, transformer less, fully digital control with microprocessor, no break static and manual transferring

  • Cleaned source: power factor correction for unitary power factor and very low input THDI%

  • First class in efficiency: high operation efficiency up to 96,5% in normal mode, up to 99% in eco mode operation

  • Low noise levels: the high frequency PWM for rectifier and inverter allows very low audible noise

  • Flexibility: SR10-120 can be set for several configuration as normal mode, smart mode and stand by off

  • Maximum reliability: SR10-120 can work in parallel up to 6 units. The UPS continues to operate in parallel even if one of the communication cables is disconnected

  • Battery care system: SR10-120 is suitable for use with sealed VRLA, AGM , GEL or open-vented load acid batteries, Ni-Cd batteries

  • Temperature voltage compensation

  • Deep discharging controlled by microprocessor with load and main levels (sharing power mode suitable within -40% Vin)

  • High power availability: the output factor 0,9 providing up to 15% more active power than a traditional UPS and more load expansion

  • Low management cost: the transformer less technology allows the lowest footprint in this category. The SR10-120 design allows front, top, and sides access

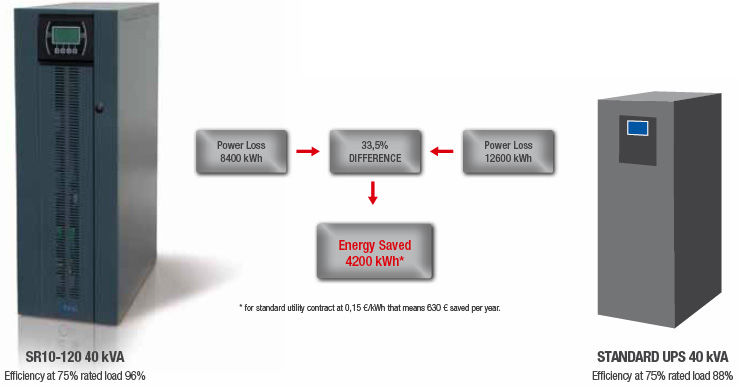

SR 10-120 series - COST SAVING IN EFFICIENCY





SR10-120 is the first class in cost saving due to efficiency up

to 96.5% providing a 50% saving in energy usage per

annum compared to traditional UPS products (92% standard).

This exceptional performance can lead to a full initial

investment recovery within three years.

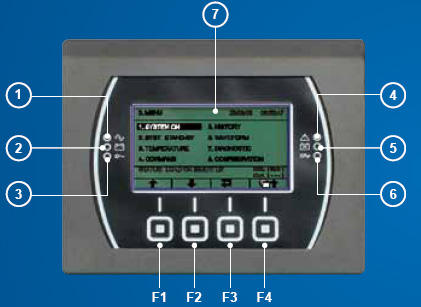

UPS FRONT PANEL



1.    LED for mains operation

2.    LED for battery operation

3.    LED for load on bypass

4.    LED for stand-by/alarm
5.    LED for replacing batteries
6.    LED for ECO mode
7.    Graphical Display


F1, F2, F3, F4 = Function Keys.



Messages are available in the following languages: English, Italian,

French, German, Spanish, Polish, Turkish, Chinese and Russian

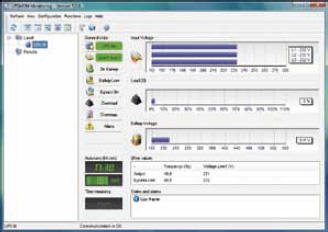

PowerShield2 provides user-friendly UPS management. The software displays real time information in the form of bar charts and values for critical data such as mains voltage, UPS load and battery charge. It allows remote interrogation of UPS logs and operating parameters to help diagnose alarms and potential fault conditions.



When instructed the software performs an automated safe power down of the protected PCs and file severs. providing the user with information regarding operating status



ADVANCED COMMUNICATION



  • SR10-120 Plus is equipped with a graphic display that provides information, measures, states and alarms regarding the UPS in 9 different languages

  • Advanced, multi-platform communication, for all operating systems and network environments: PowerShield3 monitoring and shut-down software included, with SNMP agent, for Windows NT 4.0, Vista, XP; Mac OS 10.x, Linux, Novell Operating systems. The UPS is equipped with a cable for direct connection to the PC (Plug and Play)

  • Can also provide shut-down software for: IBM AIX; Free BSD; BSDI UNIX; BSD/OS; Unixware; SCO Opanserver; Solaris; SUN; DEC; Compaq True64; HP UNIX; SGI Irix MIPS; NCR UNIX

  • RS232 or USB serial port

  • 3 slots for the installation of optional communication accessories such as network adapters and volt-free contacts

  • REPO (Remote Emergency Power Off) with which to power down the UPS through a remote emergency pushbutton

  • Input for synchronization from an external source

  • Graphic mimic panel display for remote connection



TECHNICAL ASSISTANCE SERVICE



UPService, our technical assistance facility uses highly trained engineers to provide a reliable and competent technical support and after–sales service.



UPService can provide customers with:

  • A dedicated CALL CENTER for connection to the UPService organisation. UPService personnel are always available and ready to provide advice and assistance regarding UPS installation, maintenance, fault finding and repair.



  • FAST AND READY A fast repair on site is guaranteed through the use of state-of-the-art UPS technology and professionalism of the UPService personnel and Authorized Assistance Centers. UPService guarantees that failed parts are replaced with original ones, tested and updated in order to maintain the safety, reliability and operating characteristics of the UPS.



  • COMMISSIONING AND START-UP UPService can provide assistance during commissioning and start of the UPS equipment on-sit with additional training during handover to site personnel. UPService engineers can also verify site suitability, analyze and advise to potential problems, and disconnect and relocate equipment. UPService recommend that all hardwired installations are commissioned by UPService engineers.



  • MAINTENANCE CONTRACTS can be provided by UPService to minimize response times and repair costs. Contracts range from periodic inspections to comprehensive cover including labor and materials.



  • The TELEGUARD software package provides remote 24x7 UPS supervision. TeleGuard can interrogate G-TECH connected to a local telephone line check on their operating logs and system status. Should the UPS report an alarm condition, the UPService Call Center is immediately notified and a dedicated customer response activated. Routing site reports can be sent automatically to customer personnel.



  • UPService organize regular TECHNICAL TRAINING COURSES for UPS operator and installers.



SR 10-120 series



THREE/SINGLE PHASE MODELS

TECHNICAL SPECIFICATIONS

SR10M SR12M SR15M SR20M

INPUT

Rated voltage

380-400-415 Vac three-phase with Neutral / 220-230-240 single-phase

Voltage tolerance

240V - 480V (3 Phase) / 140V - 276V (1 Phase)

Rated Frequency range

50/60 Hz

Frequency tolerance

40 ÷ 72 Hz

Power factor at full load

0.99

Current distortion

THDi ≤ 3%

BYPASS

Rated voltage

220-230-240 Vac

Number of phases

1 phase

Voltage tolerance

180 ÷ 264 V (selectable)

Rated frequency

50/60 Hz (selectable)

Frequency tolerance

+5% (selectable)

OUTPUT

Rated power (kVA)

10 12 15 20

Rated power (kW)

8 9.6 12 16

Output power factor

0.8

Number of phases

1 phase

Rated voltage (V)

220-230-240 Vac (selectable)

Static variation

+ 1%

Dynamic variation

+ 3%, EN62040-3 class performance 1 distorting load

Crest factor (lpeak/lrms)

3:1

Voltage distortion (EN62040-3)

< 1% with linear load / < 3% with non-linear load

Frequency

50/60 Hz

Frequency stability on battery mode

+0.01%

Overload at pF 0.8

110% for 10 minutes, 133% for 1 minute, 150% for 5 seconds

BATTERIES

Type

VRLA AGM/GEL; Ni-Cd; WET TYPE

Recharge Time

6 h

ENVIRONMENTAL

Weight without internal batteries (Kg)

105 110 115 120

Dimensions (LxDxH) (mm)

440 x 850 x 1320

Communication

DOUBLE RS232/C - SNMP Agent - MODBUS - PROFIBUSoC

Operating temperature

0°C / +40°C

Relative humidity

90% non condensing

Colour

Dark Grey RAL 7016

Noise ( dBA @ 1m)

≤ 48 ≤ 52

Protection rating

IP20

Efficiency Smart Mode

> 98% in Economy mode

Compliance

European Directives: L V 2006/95/CE Low voltage directive EMC 2004/108/EC Electromagnetic compatibility directive Standards: Safety IEC EN 62040-1; EMC IEC EN 62040-2 C2 Classification according to IEC 62040-3 (Voltage Frequency Independent) VFI - SS - 111



Note: Due to continuous product improvement technical specifications are subject to change without prior notice.

SR 10-120 series

THREE/THREE PHASE MODELS

TECHNICAL SPECIFICATIONS

SR10T SR12T SR15T SR20T SR30T SR40T SR100T SR120T

INPUT

Rated voltage

380-400-415 Vac three-phase with Neutral

Voltage tolerance

240V - 480V (3 Phase)

Rated Frequency range

50/60 Hz

Frequency tolerance

40 ÷ 72 Hz

Power factor at full load

0.99

Current distortion

THDi ≤ 3% THDi ≤ 4%

BYPASS

Rated voltage

380-400-415 Vac three-phase with Neutral

Number of phases

3 phase + N

Voltage tolerance

180 ÷ 264 V (selectable)

Rated frequency

50/60 Hz (selectable)

Frequency tolerance

+5% (selectable)

Frequency stability on battery mode

+ 0.01%

Overload at pF 0.8

115% infinite; 125% for 10 mins; 150% for 60 secs; 168% for 5sec

OUTPUT

Rated power (kVA)

10 12 15 20 30 40 100 120

Rated power (kW)

9 10.8 13.5 18 27 36 90 108

Output power factor

0.9

Number of phases

3 phase + N

Rated voltage (V)

380-400-415 Vac (selectable)

Static variation

+ 1% + 0.5%

Dynamic variation

+ 3%, EN62040-3 class performance 1 distorting load

Crest factor (lpeak/lrms)

3:1

BATTERIES

Type

VRLA AGM/GEL; Ni-Cd; WET TYPE

Recharge Time

6 h

ENVIRONMENTAL

Weight without internal batteries (Kg)

105 110 115 120 135 145 370 380

Dimensions (LxDxH) (mm)

440 x 850 x 1320 750 x 855 x 1900

Communication

DOUBLE RS232/C - SNMP Agent - MODBUS - PROFIBUSoC

Operating temperature

0°C / +40°C

Relative humidity

90% non condensing

Colour

Dark Grey RAL 7016

Noise ( dBA @ 1m)

≤ 48 dBA at 1 m ≤ 52 dBA at 1 m ≤ 65 dBA at 1 m

Protection rating

IP20

Efficiency Smart Mode

up to 99%

Compliance

European Directives: L V 2006/95/CE Low voltage directive

EMC 2004/108/EC Electromagnetic compatibility directive

Standards: Safety IEC EN 62040-1; EMC IEC EN 62040-2 C2

Classification according to IEC 62040-3 (Voltage Frequency Independent) VFI - SS - 111



Note: Due to continuous product improvement technical specifications are subject to change without prior notice.
