Finally the
benefits of Modular UPS are for all |
|
|
|
MUST
30-120 |
|
|
|

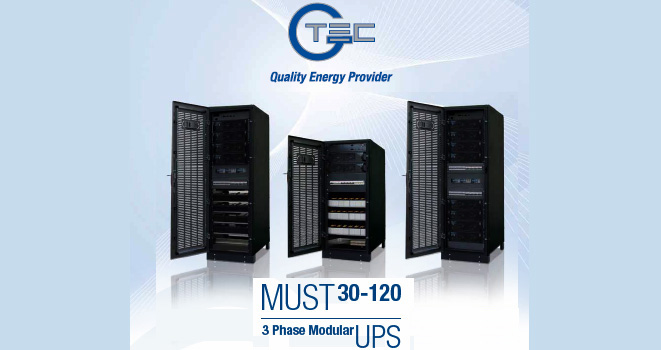

The MUST 30/120 is an
uninterruptible power supply, three phase input/ output,
ranging from 15 kVA to
120 kVA (equipped with 15 kVA

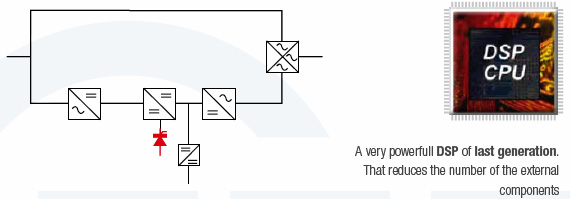

UPS modules), a double conversion system, provided of DSP
technology, designed to work for redundant applications
(N+1).
EACH
MODULE IS A COMPLETE AND INDEPENDENT UPS
-
Three phase rectifier
-
Battery charger
-
IGBT Inverter
-
Static switch
-
DSP control logic
|
|
|
|
 |
|
SYSTEM ADVANTAGES |
|
|
-
Highest reliability ( MTBF
of the suppling chain 100 times more than the stand
alone UPS)
-
Replacement of the fault
module, with no supply interruption, (Hot swap
-
Time to replace the module
< 3 min
-
Power increasing simply by
adding a module unit
-
Very low maintenance costs
-
Each module is a complete
and independent Uninterruptible Power Supply
|
|
 |
|
|
|
THE HIGHEST CLASS PERFORMANCE TO SUPPLY THE MOST CRITICAL
LOADS |
|
|
|
|
THE MUST SYSTEM |
|
|
|
|
THE MINI MUST 30 |
|
|
|
|
|
MINI MUST is the Entry Level to
the MUST Family. It is the ideal solution
to supply a medium load that
requires the redundancy or the possibility
to expand the power in the
future. Its advantages win against any stand
alone ups solution. The
solution is very compact and with the possibility
to expand also the autonomy
adding up to 3 battery banks in the same
cabinet. Power ranging from 15
kVA to 30 kva (2 modules), 19’’ rack
mounted with the internal
battery pack.
|
 |
|

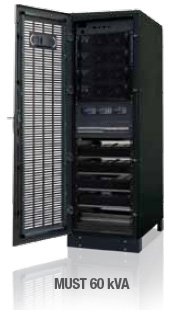

MUST 60 |
|
|
|
|
|
Modular UPS three phase system
ranging from 15 kva to 60 kva , 19’’ rack
mounted with the internal battery pack. This solution can
include 4 modules
15 kva providing the following back up time at 75% of
nominal load.
|
Max
back up time with internal battery pack |
|
Nr
power modules |
kVA |
kW at
75% of the rated load |
backup time (min) |
|
1
|
15
|
9
|
75 |
|
2
|
30
|
18
|
32 |
|
3
|
45
|
27
|
16 |
|
4
|
60
|
36
|
12 |
If redundancy is requested (N+1 modules) the max output power will be
45 kVA
|
 |
|

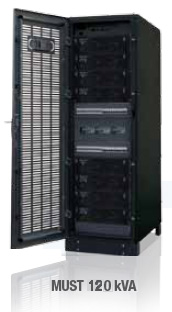

MUST 120 |
 |
|
|
|
Modular UPS three phase system ranging from 15 kVA to 120 kVA, 19’’
rack mounted,
designed for external battery cabinet. The max output
power of the MUST cabinet is
120 kVA ( 8 modules 15 kVA/each).
The battery pack are included in the external
cabinet. If redundancy is
requested ( N+1 modules) the max output power is 105 kVA
|
|
|

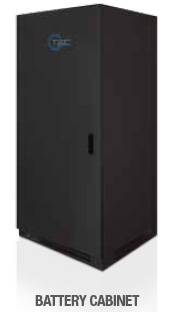

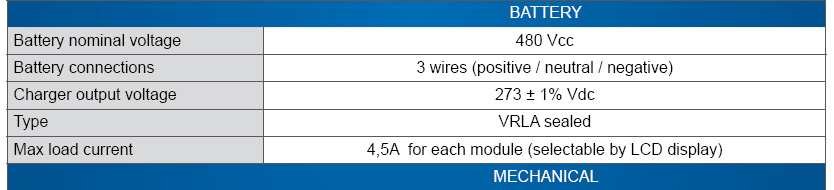

Modular battery cabinet (2000x1000x800 HxDxW)
|
|
|
|
|
It is designed to include up to 40 x 100 Ah battery blocks. This battery
pack, with a 75%
of the max load, allows a standard autonomy of 20
minutes. Longer back up time is
possible simply adding battery cabinets,
working in parallel or using other battery
packs in shelves
|
 |
|

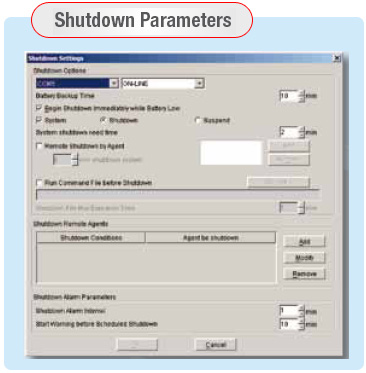

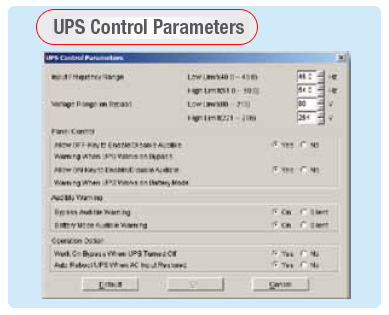

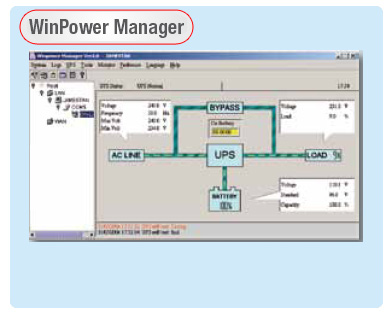

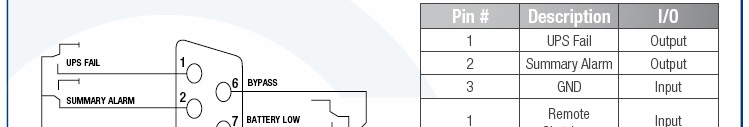

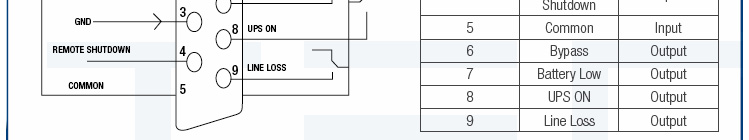

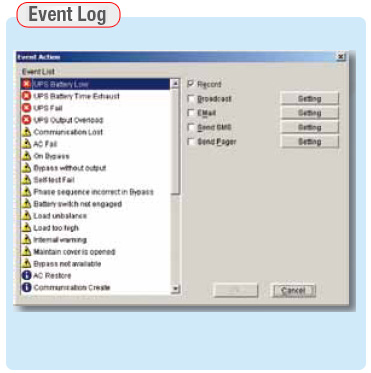

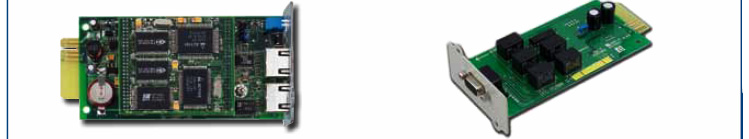

USER INTERFACE |
|
 |
|
 |
|
|
|
  |
|
  |
|
|
|
MUST
30-120 |
|
|
|
|
|
